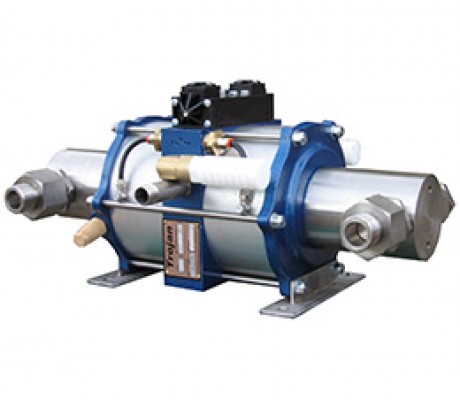

Trojan Type ‘M’ air powered pump
Twelve models with maximum test pressures ranging from 33 bar – 3,040 bar.

  • Trojan Type M
  • Trojan Type M base
CLICK HERE TO VIEW PRODUCT DETAILS


The Trojan Type ‘M’ air driven pumps are a tried and tested series of units designed to deliver a wide range of fluids to pressures up to 2660 bar. The range features:

• Twelve ratios ranging from 33 – 3,040 bar
• Stainless steel wetted parts
• Suitable for pumping water, oil and a wide range of fluids
• Free flow outputs from 0.5 to 37 litres/minute
• Automatic stall against closed outlet with no air consumption, automatic restart
• Minimum air pressure required to start pump will be up to 1 bar
• Low pressure running version available
• Powered by any fixed or portable compressed air source up to 8 bar
• Infinitely variable capacity and discharge pressure through simple regulation of air supply
• Available in portable pressure test packages.
• ATEX ATEX Info

Application Include:


PRESSURE TESTING: Static and burst testing of hoses, valves, tubing, testing of fire extinguishers, gas bottles, pressure vessels, hydraulic circuits and components, aircraft and automobile braking systems, pipeline testing, wellheads.

GENERAL HYDRAULICS: Power source for hydraulic rams and cylinders, scissor lifts, jacks, hydraulic presses, clamping systems, bolt cutters, bolt tensioners, axle lifts, ramps, mobile power supplies.

PROCESS INDUSTRY: Isostatic presses, component life tests, chemical injection, etching machines, spraying equipment, lamination processes, impregnation machines.

CONSTRUCTION AND MINING: Grit blasting equipment, rock breakers, pressure cutters/washers, rock drills, injection equipment.

Technical Specifications

View in landscape to see all 12 ratios.

RATIO 1: 4.4 9.9 13.8 17.6 28 38 53 79 114 159 256 400
OUTPUT PER CYCLE (cc) 195 86 62 48 30 22 16 10 7 5 3 2
MAXIMUM FREE FLOW (litres/minute) 37 23 15 11 7.3 5.8 3.8 2.8 1.8 1.5 0.84 0.58
OUTPUT PRESSURE (BAR) WITH 7 BAR AIR SUPPLY PRESSURE 29 65 90 115 185 250 350 525 755 1055 1700 2660
MAXIMUM OUTPUT PRESSURE (BAR) WITH 8 BAR AIR SUPPLY PRESSURE 33 75 104 133 212 288 402 600 866 1208 1945 3040
